55" Interactive Video Wall HD Physical Resolution 1920*1080
DDW-LW550HN14
Interactive Video Wall Quick Details
Input Voltage: AC 110-240V
Brightness: 700nits
Total bezel width: 1.7mm
Resolution: 1920*1080
Contrast: 4000:1
Surface: anti-glare
Video wall monitor power consummtion:250W
Application condition: indoor and semi-outdoor
55" Interactive Video Wall features:
1, Original Industrial grade LCD video wall panel,16:9 LG a-Si
TFT-LCD
2, LED backlight 700nits high brightness.Only 1.7mm Ultra narrow bezel.high quality ,Practical ,good vision
effect.
3, HD physical resolution 1920*1080
4, Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP
loop in loop out, RS232 input output
5, FHD video wall unit--- High brightness,high contrast,High gamut
.

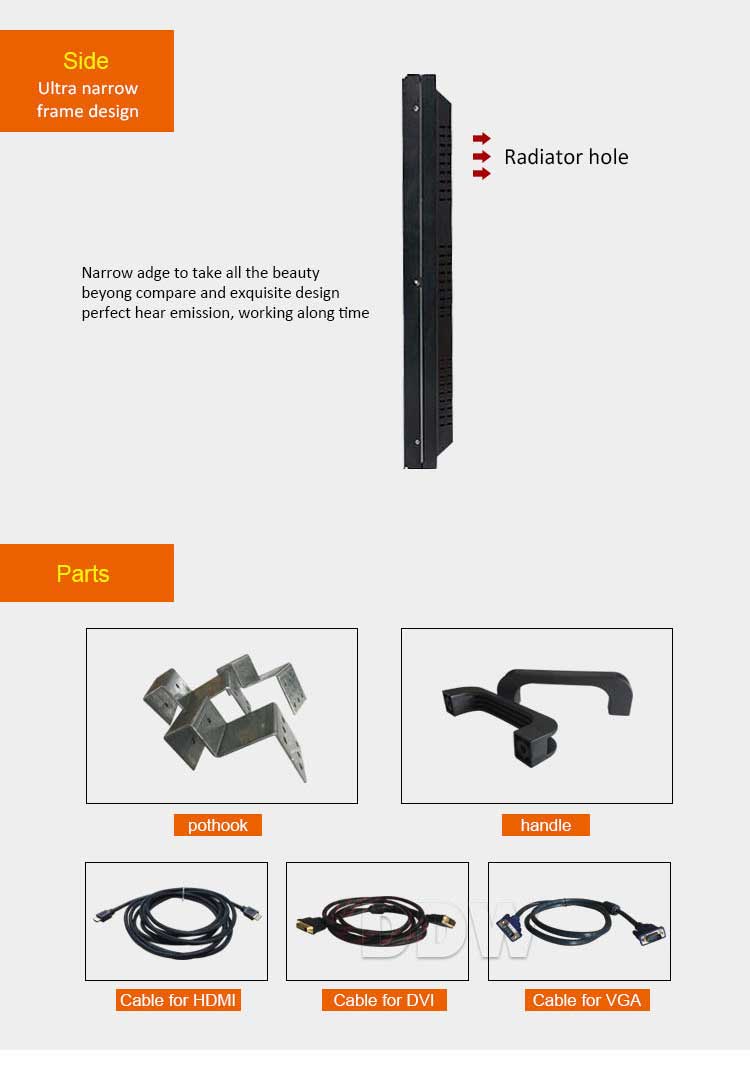

6, Flexible structure design ---easy installation
,extensible,arbitrary combination
7, Stable performance,suitable working for a long time
Interactive Video Wall Applications
This 55inch 1.7mm narrow bezel video wall is the best
cost-effective model , which can be widely used for CCTV control
room Conference and meeting rooms , GYM center , Lobbies , Security
Monitoring Center , Surveillance and Retail Center , Restaurant and
hotel , Retail Shopping Mall Advertising and information Displays ,
Public Installations , Exhibition and show center , Live show ,
Rental and advertising Center , Museums , Church , Transportation
and Mass Info Display systems.
LCD Video wall Panel Specifications
| Active Screen Diagonal | 55" 16:9 |
| Bezel Width | Total: 1.7mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backight System | LED |
| Luminance(nits) | 700cd/sqm |
| Contrast | MEGA DCR |
| Viewing Angle | H 178°|V 178° |
| Pixel Pitch(WxH) | 0.63×0.63mm |
| Active Display Area(WxH) | 1209.6×680.4mm |
| Panel Dimension(WxHxD) | 1211.4×682.2x65.1mm |
| White Point | 10,000 K |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000 h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | lower than 250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 0.85 |
| Storage Temperature | -20-60°C | -4-140°F |
| Storage Humidity | 85% non-condensing |
LCD Video Wall Board Specifications
| Support | PC | Color | 24bit |
| Signal | | Line synchronization range | 30-80KHZ |
| Field synchronization range | 50-75HZ |
DVI HDMI DP | Color | 24bit |
| Line synchronization range | 30-80KHZ |
| Field synchronization range | 50-75HZ |
| Interface | Input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I |
| DP x 1 | Display Port |
| HDMI x 2 | HDMI-19 pin |
| Output | PANEL | LVDS 36Pin/2.0 |
| DP out | DP loop out |
| Power | Input power | DC24V/12V/5V |
| Drive panel | 5V/12V |
| Power mode | Normal working mode, power saving mode |
| Other | OSD | Chinese, English and other languages (other languages can be added
as required) |
Packaging & Delivery
Packaging Details: quality carton with full wood box packing
Delivery Detail: 3 working days
