Multi Monitor CCTV Video Wall 500nits Brightness For Security Center Exhibition

Ask Lasest Price
Brand Name :	DDW
Model Number :	DDW-LW460HN11
Certification :	ISO9001 , CE , RoHS , FCC
Price :	Negotiable
Payment Terms :	L/C , L/C , T/T
Supply Ability :	3 , 000pcs per month
Delivery Time :	3 working days upon payment

Add to Cart

Product Details
Company Profile

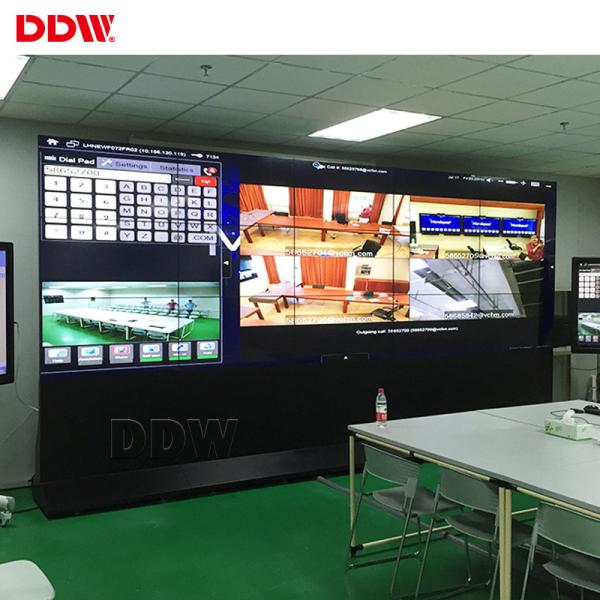

Multi Monitor CCTV Video Wall 500nits Brightness For Security Center Exhibition

Multi monitor wall CCTV Video Wall 500nits Brightness for Security Center LW460HN11

CCTV Video Wall Application

Interactive Video Wall can be used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.

CCTV Video Wall basic informations:

With original LG, Samsung panel, has a stylish design, lighter weight, easy to handle and install;
Adapting modular components, making maintenance operations and parts replacement very easily;
The installation method: floor standing cabinets;
Dot Pitch: 0.532mm(H)*0.5302mm(W); Contrast ratio: 4000:1; Responsive time: 6ms;
Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;
7x24x365 keep working;

CCTV Video Wall Functions:

Supporting 225 units (15×15) multi-matrix;
Single screen display. Each unit can display the picture independently;
Image overlay. Superimposed on screen another picture;
Easy to choose full screen or multi-screen display by control video wall controller.

CCTV Video Wall Specifications

LCD Technology	Samsung a-Si TFT-LCD
Active Screen Diagonal	46''
Panel Dimension(WxHxD)	1021.98x576.57x72.1mm
Total Bezel Width	3.5mm
Aspect Ratio	16:9
Physical Resolution	1920x1080
Backlight System	LED
Luminance(nits)	500cd/sqm
Contrast	5000:1 (typ.)
Viewing Angle	H 178°\|V 178°
Display Colors	8Bit,16.7M
Refresh Rate	60Hz
Response Time	<=6ms
Life(hrs)	>60,000(hrs)
MTBF	> 100,000h
Surface	Anti-glare
Standby Power Consumption	<3W
Maximum Power Consumption	<=250W
Power Supply	AC100~240V 50/60 HZ
Cooling	Low noise fans
Heat Dissipation	819 BTU/h (max)
Working Time Capacity	7x24x365hours
Application Area	Indoor/Semi Outdoor/Outdoor
Working Temperature	0°C~50°C
Working Humidity	85% non-condensing
Storage Temperature	-20-60°C \| -4-149°F
Storage Humidity	85% non-condensing

CCTV Video Wall Board Specifications

Support	PC	Color	24bit
Signal		Line synchronization range	30-80KHZ
		Field synchronization range	50-75HZ
	DVI HDMI DP	Color	24bit
		Line synchronization range	30-80KHZ
		Field synchronization range	50-75HZ
Interface	Input	VGA x 1	15pin D-Sub
		DVI x 1	DVI-I
		DP x 1	Display Port
		HDMI x 2	HDMI-19 pin
	Output	PANEL	LVDS 36Pin/2.0
	Output	DP out	DP loop out
Power	Input power	DC24V/12V/5V
	Drive panel	5V/12V
	Power mode	Normal working mode, power saving mode
Other	OSD	Chinese, English and other languages (other languages can be added as required)
