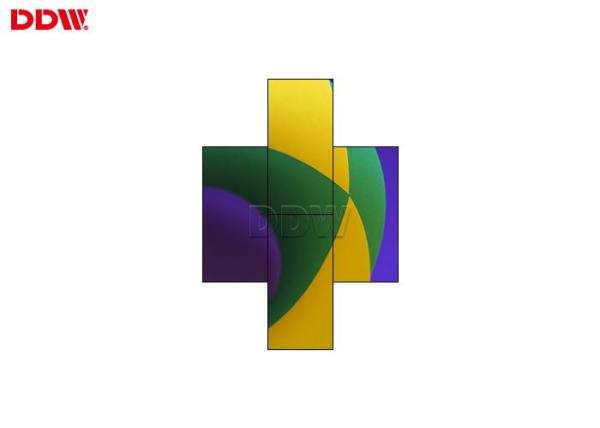

Ultra Thin Splicing Irregular Video Wall 16.7M Color Quiet Cooling
Fan
Irregular Video Wall Features:
* Use IPS hard screen panel, 16.7M color
* Ultra thin and seamless, perfect image and video effect.
* Support 256 tiled display unit, support the irregular video wall
display unit
* Wide visual angle 178H/178V
* 3D digital noise reduction processing
* Support single screen splicing
* Support image roaming combination
* Support image stretching irregular video wall
* Single screen power consumption of 1 levels of energy
consumption, low carbon imprint, environmentally friendly, normal
service life of up to 60000 hours
* Ultra quiet cooling fan design, intelligent temperature control
circuit, intelligent protection system
* Support automatic back light source adjustment technology
(option)
Irregular Video Wall Parameters:
| Name | Ultra Thin Splicing Irregular Video Wall 16.7M Color Quiet Cooling
Fan |
| Item No. | Components | Descriptions |
| 1 | 55" Samsung 1.7mm bezel | 500nits brightness,WLED Backlit,1920x1080 resolution,with 1080P
HDMI input |
| 2 | System controller | 1 in 16output HDMI splitter |
| 3 | Bracket | POP out bracket for 55" lcd video wall |
| 4 | Standard Accessories | IR Controller,Power Cables,RJ45 Cables,RS232-RJ45 Connector |
| 5 | Packing | 4/5 screens in 1 wooden case |
| Panel Specifications |
| LCD Technology | Original Samsung DID LCD |
| Active Screen Diagonal | 55" |
| Panel Dimension(WxH) | 1211.6*682.4mm |
| Total Bezel Width | 1.7mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920*1080 |
| Backlight System | WLED |
| Luminance(nits) | 500cd/m2 |
| Contrast | 1500:1 (typ.) |
| Viewing Angle | H 178°|V 178° |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000 h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | <=260W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Working Time Capacity | 7x24x365hours |
| Working Temperature | 0℃~50℃ |
| Working Humidity | 0.85 |
| Storage Temperature | -20-60°C | -4-140°F |
| Storage Humidity | 85% non-condensing |
| Net Weight | 26kg/unit |
| 1080P HDMI input daisy chain board Signal Inputs, Outputs |
Packaging & Delivery
Selling Units:Single item
Single package size: 110X20X80 cm
Single gross weight:32.0 kg
Package Type:Quality carton with full wood box packing
Lead Time :
| Quantity(Piece) | 1 - 50 | 51 - 100 | >100 |
| Est. Time(days) | 3 | 5 | To be negotiated |
